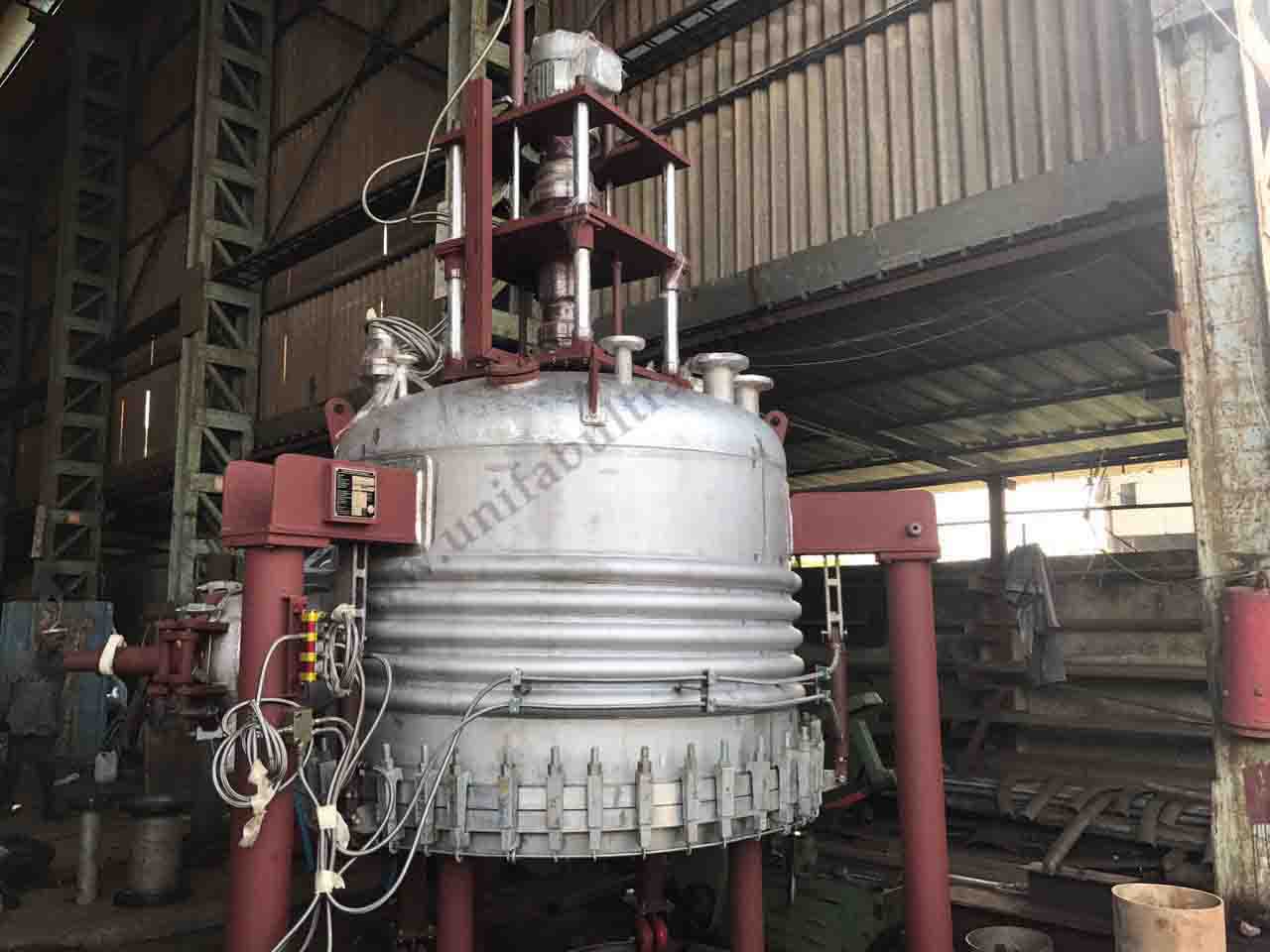

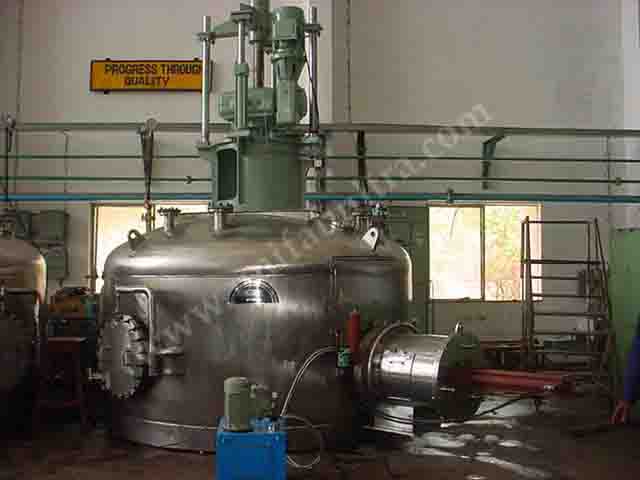

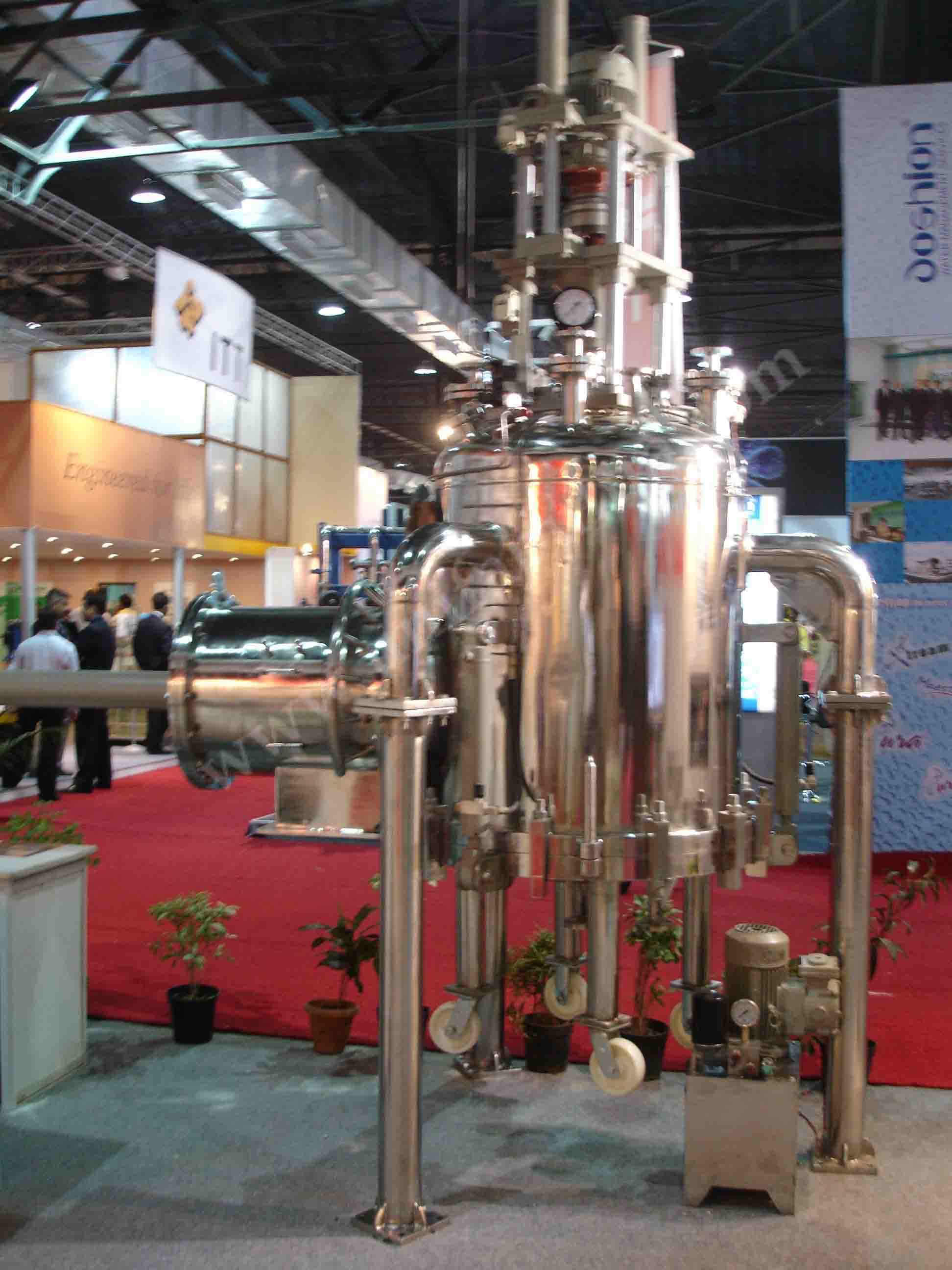

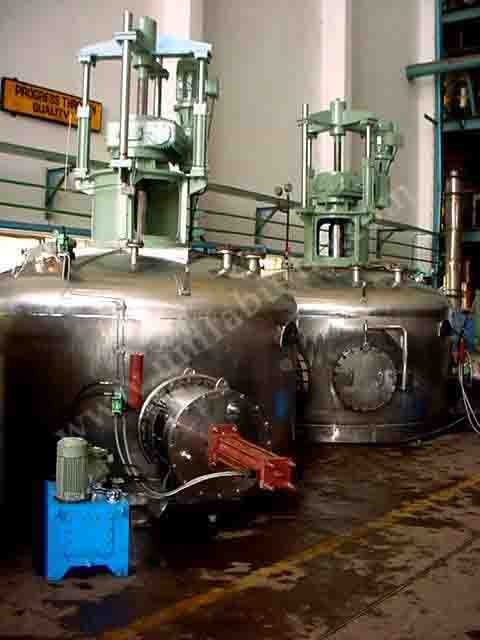

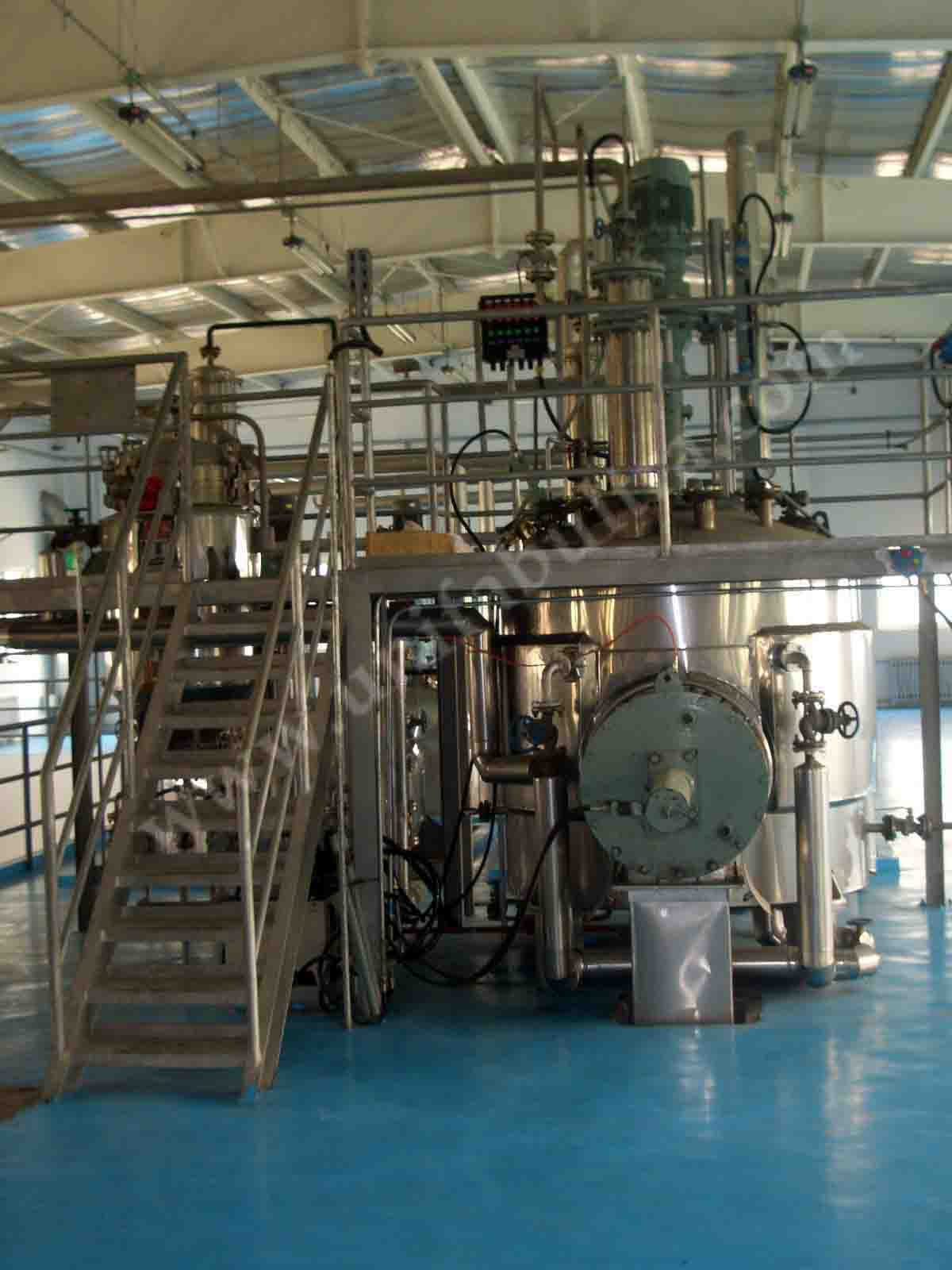

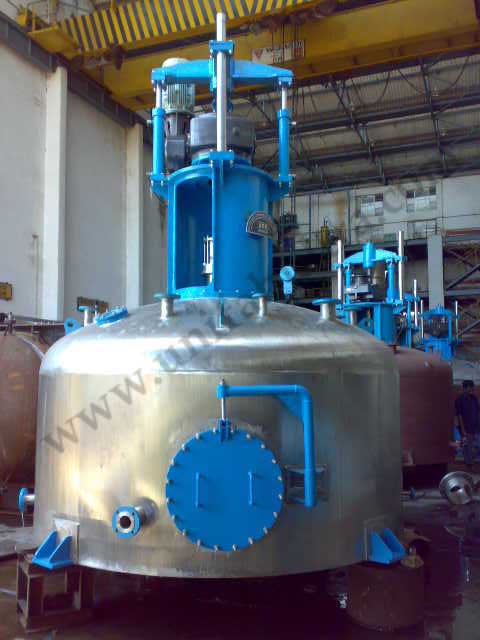

Agitated Nutsche Filters

Agitated Nutsche Filters

Agitated Nutsche Filters offer an economic operation where the maximum percentage of liquid in a slurry is separated through mechanical means. The remaining little moisture can be removed by evaporation to obtain dry products.

Advantages

  • No possibility of atmospheric pollution from toxic fumes/obnoxious smell generated from the slurry.
  • Explosion or fire hazard on account of spillage eliminated.
  • Very high solvent recovery is possible.
  • Very effective washing of cake due to re-slurrying resulting in thorough particulate washing and reduced washes and volume of wash liquor.
  • Possibility of reaction filtration, washing and distillation in the same equipment and even in some cases drying.

Configuration Available

  1. Pressure-cum-Vacuum filter.
  2. Bottom detachable arrangement for ease of cleaning/cloth fixing. Manual C clamp and bayonet design.
  3. Electro-mechanical drive and hydraulic shaft lift.
  4. Hydraulic lift and drive.
  5. Hydraulic discharge valve.
  6. GMP Models for clean room applications.
  7. Different stirrer designs based on physical characteristics of materials.
Model No. UNF Pilot UNF 1000 UNF 2000 UNF 3000 UNF 4000 UNF 5000 UNF 6000 UNF 7000
Working Capacity (Ltrs.) 500 1000 2000 3000 4000 5000 6000 7000
Filtering Area (sq. m.) 0.68 1.02 1.82 2.7 3.2 4.7 5.7 6.5
RPM 20 20 20 15 12 12 12 10
Motor - Rotary 5 5 7.5 7.5 10 12.5 15 15
H.P. - Vertical 1 1 1 1 1 1 1 1
Internal Dia.(mm) 1000 1200 1600 2000 2200 2600 2800 3000
Over height(mm) 3400 3600 3800 4100 4300 4500 4800 5000

Please note that the company has been manufacturing capacities upto 20000 Ltrs. These models are offered on request by clients.
